1x8 Steel Tube PLC Fiber Splitter

1x8 Steel Tube PLC Fiber Splitter

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 10 Set/Sets
    Delivery Time: 5 Days
    Packaging: Carton
    Brand: Sijee or OEM
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 20000 pieces per week
    Certificate: ISO9001
    Port: Ningbo,Shanghai

Basic Info

Model No.: BWN-PLC-MMST-1X8

Product Description

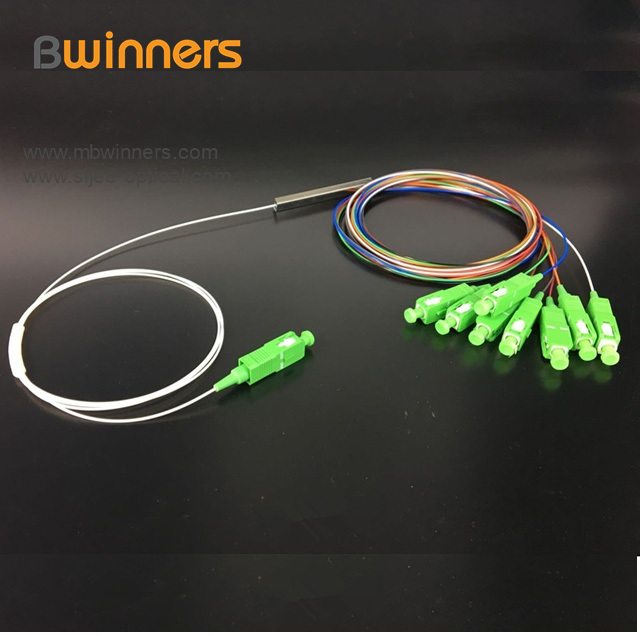

BWN-PLC-MMST-1X8 Steel Tube 1x8 PLC Splitter, With SC/APC Connector

Steel Tube PLC Fiber Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (OLT) to multiple premise locations (ONU). Plc Splitter features small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting as a low-cost solution. Sijee has ability to provide all arrange of 1xN and 2xN PLC splitters that are tailored for specific applications.


Fiber optic splitter is also called optical splitter, is one of the most important passive devices in optical fiber link, is with multiple inputs and multiple output end of the optical fiber connected devices. The fiber optic splitter by the light splitting principle can be divided into the fused biconical taper (FBT type) and planar waveguide type (PLC type).

Product parameter:

Product Name

Steel tube 1x8 PLC splitter with SC/APC connector

Package Size

60*7*4mm

Weight

0.20kg

Insertion Loss

10.7dB

Specification:

Product Type

1x8 PLC splitter

Operating Wavelength

nm

1260--1650

Insertion Loss

Typ.

dB

10

Max

dB

10.7

Uniformity(Max)

dB

1

PDL(Max)

dB

0.3

TDL(Max)

dB

0.5

Return Loss

dB

≥55

Directivity

dB

≥50

Operating &Storage Temperature

-40--+80

Note:All the date above does not include connectors,UPC connectors,IL add 0.2dB, APC cnnectors,IL add 0.3dB.

Steel Tube 1x8 Plc Splitter With Scapc Connector
